1959 Zenith C845M High Fidelity AM/FM Radio

This radio repair is cross-posted from Rain City Audio

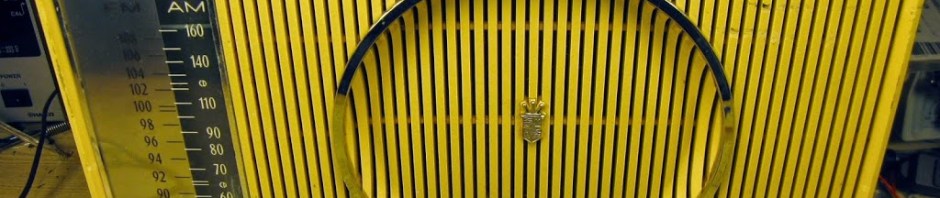

This classic 1959 Zenith C845M radio came into the shop for a full repair after sitting unused for some time. It has the classic late ’50s styling, and a dual speaker high-fidelity design.

IMG_0355

It’s an 8-tube radio with a 35C5 output tube good for maybe 3W of maximum output, but it has great sound quality.

IMG_0358

Inside, it’s covered in a lot of original dust, and is missing about half of its tubes:

IMG_0360

Here’s a good shot of the two speakers, with a single capacitor high-pass filter on the tweeter.

IMG_0361
IMG_0363

Underneath it’s mostly original although saw some service at one point. Very unfortunately, it’s a series-string radio; otherwise it’s quality construction. There was plenty of room under the chassis to work,  too. Zenith used precision resistors in this build and they were all within tolerance. After the film capacitors, the electrolytic capacitors were replaced.

IMG_0863

Component replacement complete:

IMG_0865

Time for a first power-up!

IMG_1139

And immediately, one of the tubes that had tested earlier immediately blew its filament. So, it was time to replace that tube and for good measure the other two as well, so it received a fully new tube compliment.

IMG_1141

Finally, time for an alignment. Using the alignment tool, I adjusted the cores inside the IF transformers. This cleaned up some of the remaining distortion and increased the volume a bit.

IMG_1144

The components have drifted a bit so the dial tracking isn’t perfect, but it’s close. Looking carefully, one of the IF transformer has a manufacturing error – the label stamped into the top of the can has an inverted “F” when a technician set the stamp incorrectly.

IMG_1148

Back in the cabinet!

IMG_1153

I took a video of it tuning through the range on both bands:

This is going to sound great for a long time to come. It does have a phono input on the back where you could connect an external input, but, due to the series string construction it’s not safe to connect anything modern to that input as it’s a shock hazard.

IMG_1158

This does justice to the High Fidelity label, it sounds great with the large speaker and dedicated tweeter, and it plays loud and strong on both AM and FM. On AFC, tuning between stations is very crisp. This should be a great daily driver!
